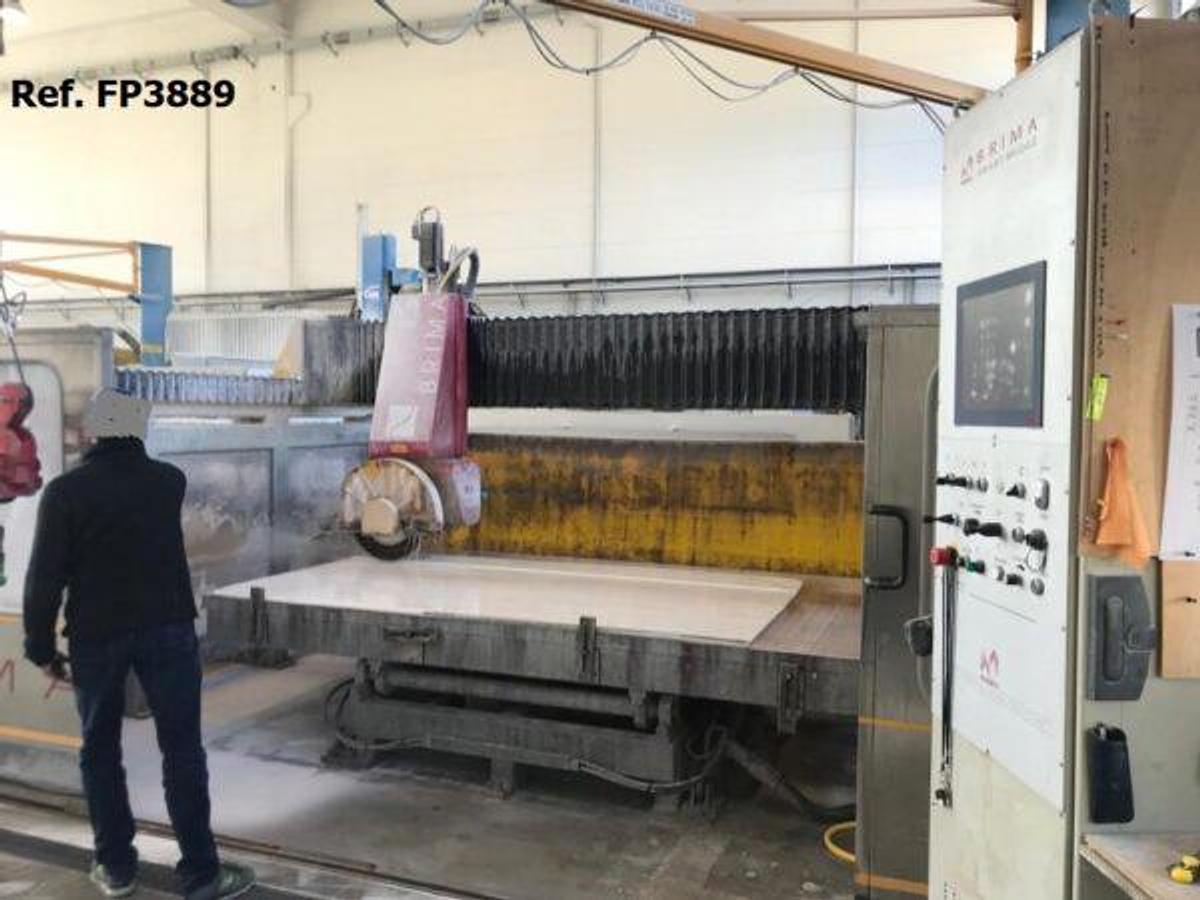

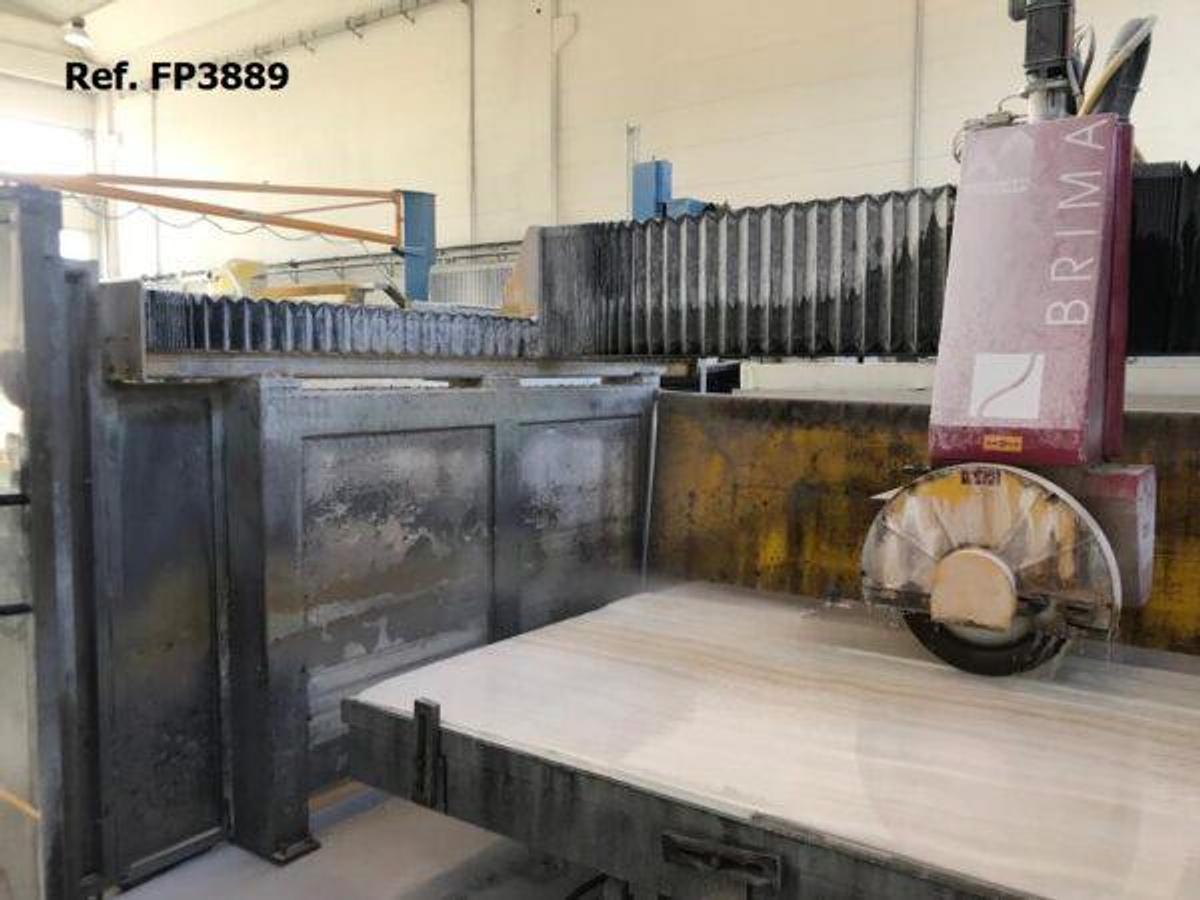

2011 MARCHETTI BRIMA START CNC – 4+1 AXIS

Bridge milling machine MARCHETTI, BRIMA START CNC, 4+1 AXIS Ref. FP3889 Head rotation (C axis) 370° Spindle tilt (A axis) 0° – 90° Manual X axis travel 3600 mm Y axis travel 1800 mm Z axis travel 300 mm Hydraulic tilting table Standard working bench size 3000 mm x 1800 mm Carpentry supports Y-axis travel Maximum installable disc diameter 625 mm Maximum motor power 15 kW (20 Hp) Maximum motor speed 6000 rpm Cuts of single slabs and stacks of slabs in marble and granite; Curved cuts Inclined cuts Shaped cuts with disc
