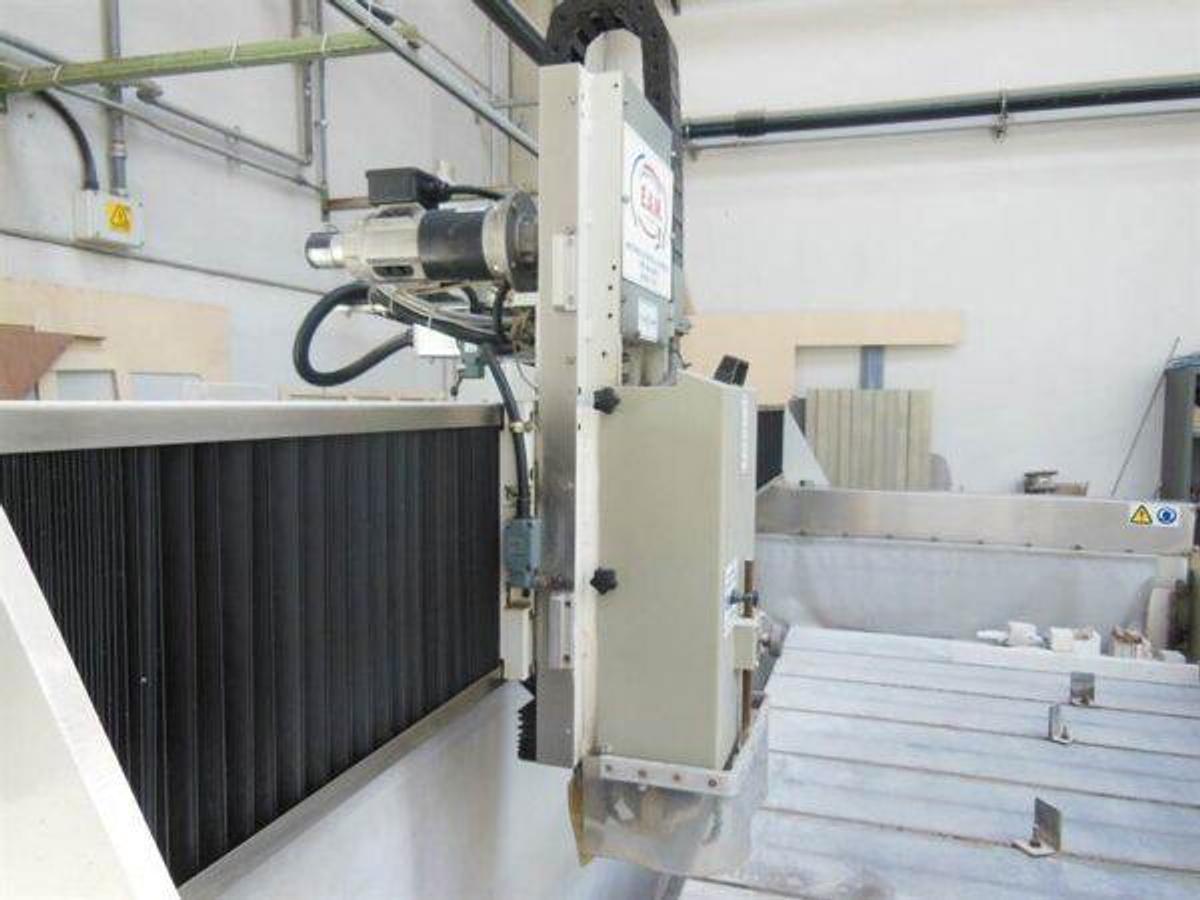

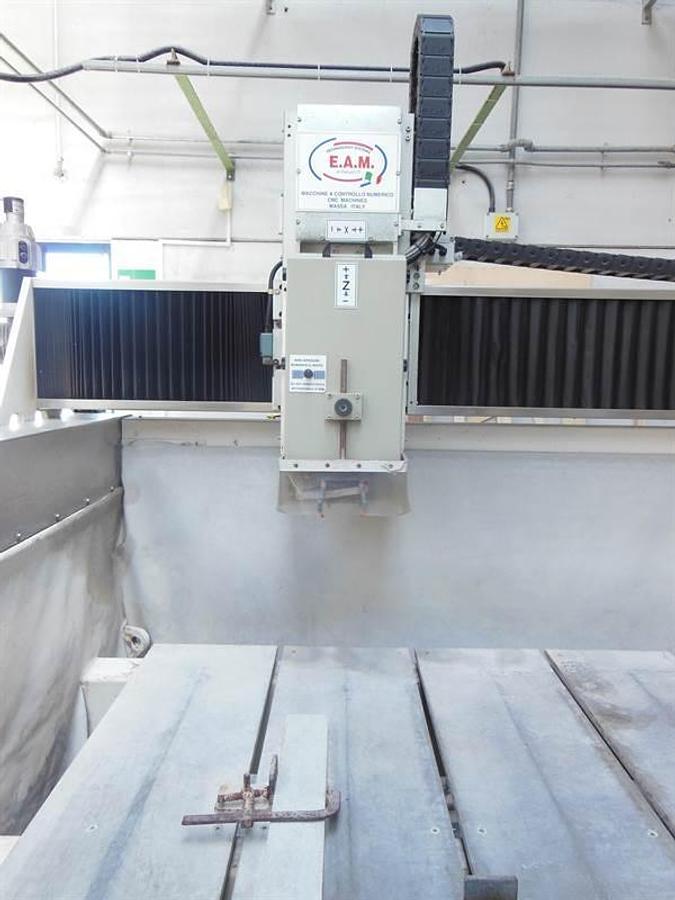

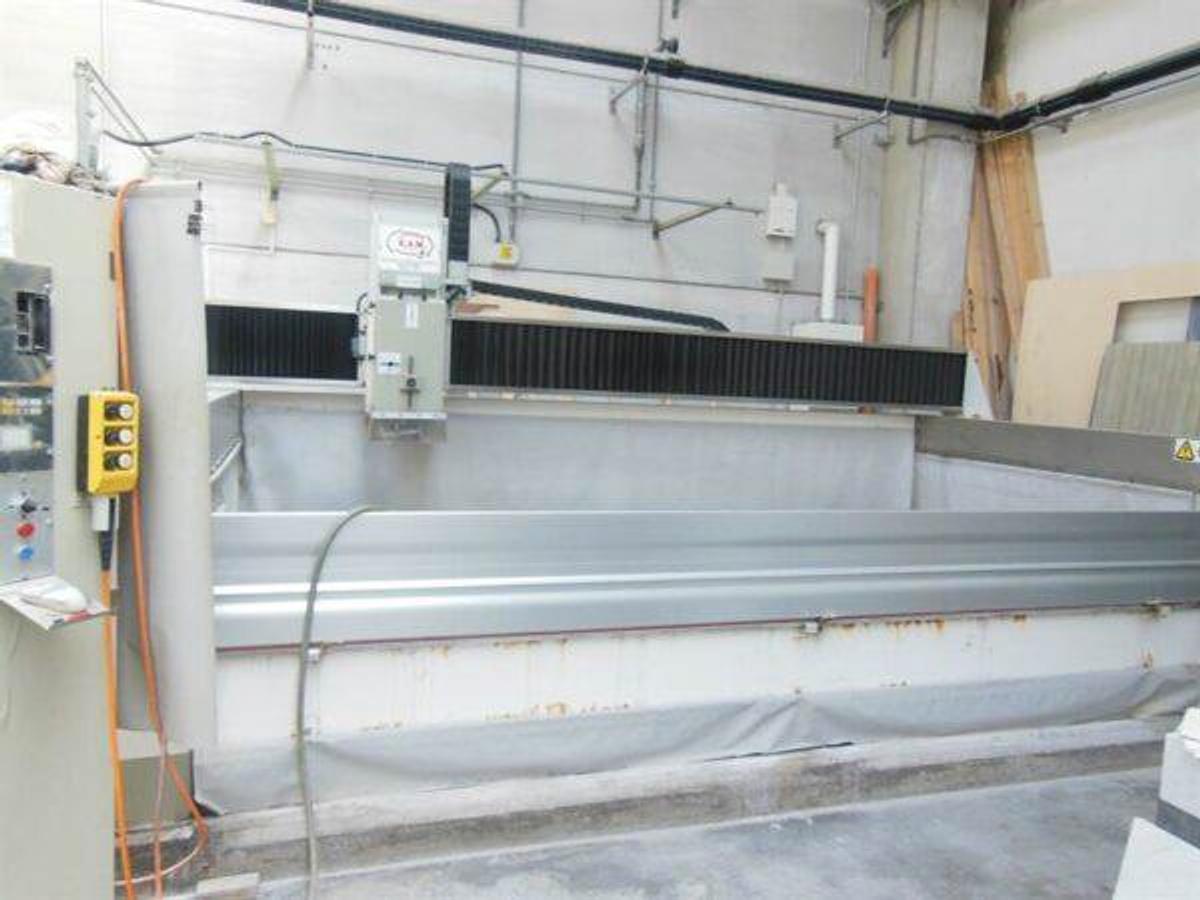

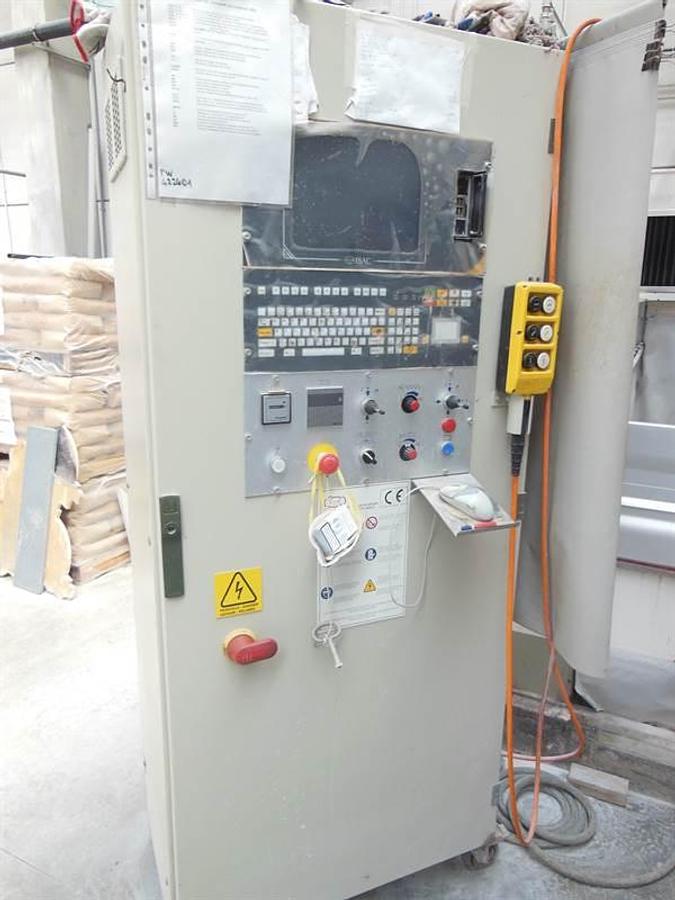

2008 E.A.M. CTEC 3A
2008 E.A.M. CTEC 3A
or
Call +39 3358312804
Description
Z axis stroke 300 mm.
Controlled spindles 3, X-Y-Z
Circular/helical interpolation
Spindle motor power 7.5 Hp
Spindle rotation speed 0-8,000 RPM
Electrical supply 220/380 V 50/60 Hz
Total installed power 12 KW
Tool holder to spindle ISO40
Workholding system with vacuum cups Water consumption 28 +/- l/min.
Sound pressure level < 85 dB(A)
Footprint 5300x2100x2200 mm.
Specifications
| Manufacturer | E.A.M. |
| Model | CTEC 3A |
| Year | 2008 |
| Condition | Used |
| Stock Number | 1275 |
| Size Useful working area | 3100×1600 mm. |
| Z axis stroke | 300 mm. |
| Overall dimensions | 169”x83”x87” |
| Useful working dimensions X-Y | 3100×1600 |
