Description

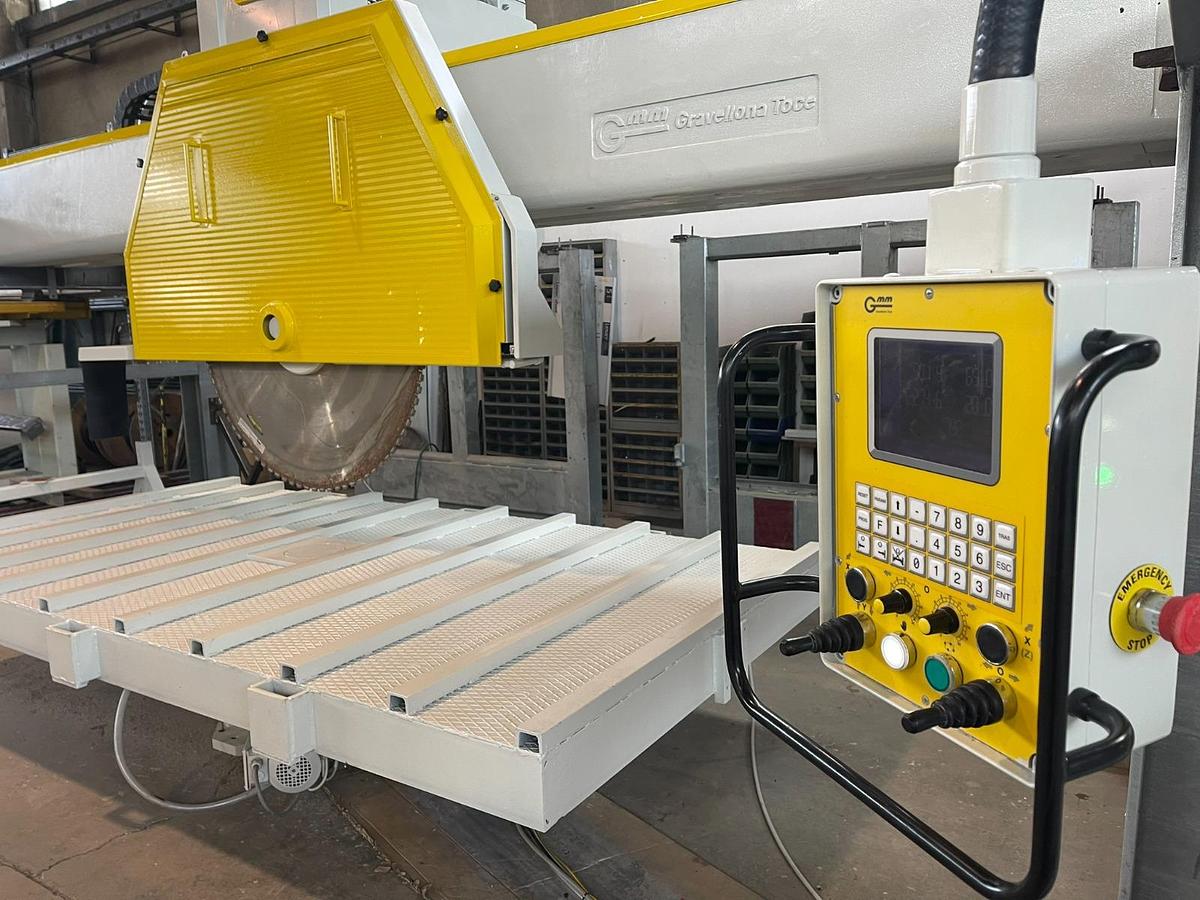

AUTOMATIC ELECTRONIC BRIDGE SAWING MACHINE WITH HEAD NOT TILTING FOR BLADE UP TO 2000mm DIAMETER
Large size sawing machine for small and industrial workshops, it can cut with the appropriate tools slabs and blocks, both marble and granite, with manual or automatic operation.
It associates great solidity to user friendliness.
Technical data are simply indicative
Specifications
| Manufacturer | GMM |
| Model | DIAMA 40 A |
| Year | 2007 |
| Condition | Refurbished |
| Stock Number | FP3966 |
| Maximum blade diameter | 1200 / 2000 mm |
| Cutting stroke of the blade (asse X) | 4000 / 3600 mm |
| Maximum bridge translation (asse Y) | 3700 mm -> Optional 7200 mm |
| Maximum vertical travel of the blade (asse Z) | 1000 mm |
| Maximum cutting depth | 610 / 810 mm |
| Blade locking flange diameter | 370 mm |
| Manual rotating table | 1750x3400 (optional) |
| Blade motor | HP 90 / 50Hz 6p |
| Variable cutting and return speeds (asse O) | 0 ÷ 18 |
| Cooling water consuption | 3 bar 60 l/min |
| Voltage | 415/50 Volt/Hz |
